1 Ltr Triple Layer With V-strip Blow Moulding Machine

Name: 1 Ltr Triple Layer With V-strip Blow Moulding Machine
Brand: FAITH ENGINEERING WORKS
Price: 2050000 INR
Availability: InStock

2050000 INR/Piece

Get a Price/Quote

Product Details:

Product Type Blow Moulding Machine
General Use Plastic Bottle Manufacturing
Material Mild Steel
Capacity 150 Bottles Per Hour (BPH) Pcs/hr
Weight (kg) 3400 kg Kilograms (kg)
Type Other
Computerized Yes
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

1 Ltr Triple Layer With V-strip Blow Moulding Machine Price And Quantity

Price 2050000 INR/Piece
Minimum Order Quantity 1 Piece

1 Ltr Triple Layer With V-strip Blow Moulding Machine Product Specifications

Stretching Stroke 330 mm
High Pressure Air Displacement 1.2 m3/min
Infrared Heater Yes
Automatic Yes
General Use Plastic Bottle Manufacturing
Color Blue & White
Low Pressure Air Displacement 1.0 m3/min
Clamping Force 15 kN Kilonewton (kN)
Dimension (L*W*H) 1800 x 700 x 1700 mm Millimeter (mm)
Material Mild Steel
Type Other
Feature Low Power Consumption
Power 10 kW Watt (w)
Clamping Stroke 180 mm
Capacity 150 Bottles Per Hour (BPH) Pcs/hr
Product Type Blow Moulding Machine
Computerized Yes
Mould Stroke 180 mm
Weight (kg) 3400 kg Kilograms (kg)
Voltage 220 V Volt (v)
Blow Moulding Type Automatic
Cavity Quantity 1 Unit

Max Bottle Volume 200 ml
Neck Diameter Range 19-30 mm
Single Cavity Design Yes
PLC Control Available
Screw Size 50 MM, 50 MM & 40 MM
Blowing Capacity 1 LTR
Hydraulic Motor 7.5 HP
Preform Diameter 19-30 mm
Heating Zones 2
PET & PP Compatible Yes
Low Maintenance Yes
Extruder Motor 7.5 HP, 7.5 HP & 5 HP
Plasticizing Capacity 16-20 KG/HR
Blow Mould Material Steel
Power Connection Load 24KW
Production Mode Semi-Automatic
Compressed Air Required Yes

1 Ltr Triple Layer With V-strip Blow Moulding Machine Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Piece Per Month
Delivery Time 80-90 Days
Main Domestic Market All India

Product Description

Ace your plastic bottle production with our 150 BPH Blow Moulding Machine-your gateway to instant savings and the lowest price on extraordinary technology. This dominant single-cavity, semi-automatic stretch blow moulding solution efficiently produces up to 150 bottles per hour. Compatible with both PET and PP, featuring rare precision in preform and neck diameters (19-30 mm), and equipped with PLC Controls for ease-of-use. Benefit from low power consumption, robust mild steel construction, and computerized controls for a remarkable user experience. Ideal for manufacturers seeking reliability and excellent output in plastic bottle manufacturing.

Versatile Applications and Commercial Dominance

The 150 BPH Blow Moulding Machine is tailored for plastic bottle manufacturing across various commercial sectors. Its application surface excels in the beverage, pharmaceutical, and cosmetic industries, handling PET and PP materials with unmatched efficiency. Designed for semi-automatic use, it perfectly suits medium-scale factories aiming for consistent quality with extraordinary precision. This dominant machine ensures reliability and flexibility, making it a preferred choice for businesses targeting superior product standards and production scalability.

Dependable Supply, Value Packaging, and Swift Delivery

Our supply ability guarantees consistent machine availability at a competitive list price, ensuring you never face production downtime. Every 150 BPH Blow Moulding Machine is securely packaged for protection during freight, maintaining its pristine condition. With a strong presence across the main domestic markets in India, our streamlined logistics guarantee fast and safe delivery to your facility, minimizing interruptions. Choose us for unmatched after-sales support and dependable supply for all your blow moulding needs.

FAQ's of 150 BPH Blow Moulding Machine:

Q: How does the 150 BPH Blow Moulding Machine simplify the bottle manufacturing process?

A: The machine automates key production steps with its single-cavity, semi-automatic design, PLC controls, and computerized settings, ensuring efficient, precise, and repeatable bottle fabrication while reducing the need for manual intervention.

Q: What types of bottles can be produced with this blow moulding machine?

A: This ace machine is compatible with PET and PP materials, supporting bottle volumes up to 200 ml and neck/preform diameters ranging from 19 mm to 30 mm-ideal for beverage, cosmetic, and pharma applications.

Q: Where is the machine principally supplied and what are the packaging details?

A: The 150 BPH Blow Moulding Machine is primarily supplied across India's main domestic markets, securely packaged to withstand transit and freight, ensuring it arrives at your location in perfect working order.

Q: What are the main commercial uses for this blow moulding machine?

A: It is dominantly used in medium-scale bottle manufacturing sectors-especially for soft drinks, pharmaceuticals, and personal care-where high-quality, small-volume bottles are needed efficiently and reliably.

Q: What benefits does the single-cavity design offer?

A: The single cavity design delivers rare precision and consistent quality while simplifying maintenance, making it extraordinary for facilities focused on quality over high-volume mass production.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Blow Moulding Machine' category

500 ML Automatic De-Flashing Blow Moulding Machine Price : 1100000 INR/Piece Minimum Order Quantity : 1 Material : Plastic Type : Other, Fully Automatic Capacity : 500 ml General Use : Plastic Container Manufacturing Automatic : Yes Product Type : Automatic DeFlashing Blow Moulding Machine Feature : Other, Automatic DeFlashing Power : 5 kW Cavity Quantity : 1 Voltage : 220V Blow Moulding Type : Extrusion Blow Moulding Color : BlueGrey Computerized : No Weight (kg) : Approx. 1100 kg Dimension (L*W*H) : 1800 x 1100 x 1850 mm

Send Inquiry

250 ML Double Stage Triple Head Blow Molding Machine Price : 1700000 INR/Piece Minimum Order Quantity : 1 Material : Other, HDPE, LDPE, PPE Type : Other, Extrusion Blow Molding Capacity : 250 ml General Use : Plastic Bottle Production Automatic : Yes Product Type : Blow Molding Machine Feature : Other, High Automation, Durable Power : 15 hp Cavity Quantity : Triple Head Voltage : 440V Blow Moulding Type : Other, Double Stage Color : BlueWhite Computerized : Yes Weight (kg) : 3000 kg

Send Inquiry

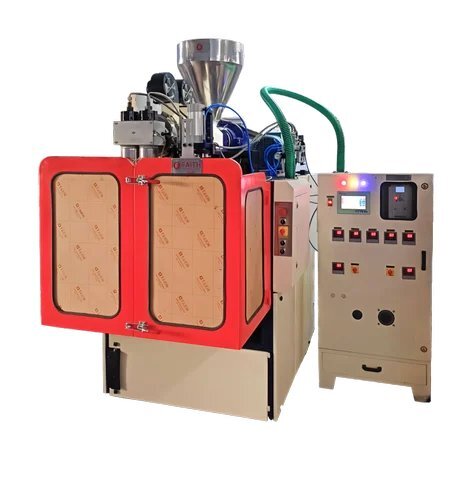

2 Ltr Automatic Blow Molding Machine Price : 1100000 INR/Piece Minimum Order Quantity : 1 Material : Other, Mild Steel Type : Other, Blow Molding Machine Capacity : 2 Ltr General Use : Plastic Bottle Manufacturing Automatic : Yes Product Type : Automatic Blow Molding Machine Feature : Other, High Automation Cavity Quantity : Double Voltage : 220380V Blow Moulding Type : Extrusion Blow Moulding Color : Blue & Grey Computerized : Other, Optional Dimension (L*W*H) : 60x36x34 inch

Send Inquiry

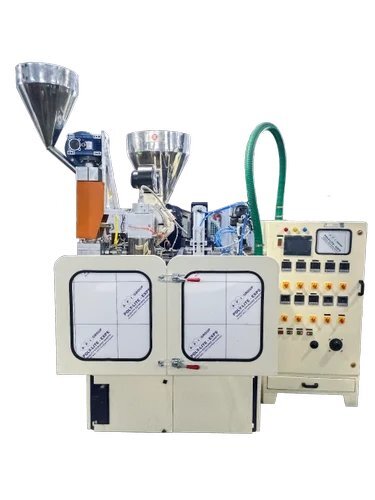

1 Ltr Single Stage Single Head With V-Strip Blow Molding Machine Price : 1150000 INR/Piece Minimum Order Quantity : 1 Material : Other, HDPE, LDPE, PPE etc. Type : Other Capacity : Up to 1 L Ltr General Use : Blowing plastic containers up to 1L Automatic : Yes Product Type : Blow Molding Machine Feature : Other, VStrip, automatic operation Power : Extruder Motor 10 HP Horsepower (HP) Cavity Quantity : Single Head / Single Cavity Unit Blow Moulding Type : Other, Single Stage Color : Industrial BlueGrey (as per image) Weight (kg) : 2000 Kilograms (kg)
