Computerized Blow Molding Machine

Name: Computerized Blow Molding Machine
Brand: FAITH ENGINEERING WORKS
Price: 1700000 INR
Availability: InStock

1700000 INR/Piece

Get a Price/Quote

Product Details:

Product Type Computerized Blow Molding Machine
General Use Plastic Bottle Manufacturing
Material Mild Steel
Capacity 2 Ltrs
Weight (kg) Approx. 2200
Type Other
Computerized Yes
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Computerized Blow Molding Machine Price And Quantity

Minimum Order Quantity 1 Piece
Price 1700000 INR/Piece

Computerized Blow Molding Machine Product Specifications

Voltage 380V
Product Type Computerized Blow Molding Machine
Low Pressure Air Displacement 300 L/min
Clamping Force 40-50 Ton
Stretching Stroke Adjustable
Feature Computerized Control Panel
Cavity Quantity 1
Blow Moulding Type Extrusion Blow Molding
Automatic Yes
High Pressure Air Displacement 1000 L/min
Material Mild Steel
Weight (kg) Approx. 2200
Color Blue-Grey
Computerized Yes
Clamping Stroke 350 mm
Dimension (L*W*H) 2400 x 1500 x 2100 mm
Type Other
Power 16-18 kW
Capacity 2 Ltrs
Mould Stroke 400 mm
General Use Plastic Bottle Manufacturing

Air Compressor Required Yes
Mould Cooling Type Water Cooled
Production Rate 200-225 BPH
PLC System Included
Plasticizing Capacity 50-60 Kg/Hr
Max Bottle Height 300 mm
Oil Tank Capacity 180 L
Screw Diameter 60 mm
Hydraulic System Integrated
Heating Zones 4 Zones

Computerized Blow Molding Machine Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Product Description

Discover the rarefied Computerized Blow Molding Machine-now on clearance! In demand by top manufacturers, this outstanding machine offers a screw diameter of 60 mm, a plasticizing capacity of 50-60 kg/hr, and delivers a gorgeous production rate of 200-225 bottles per hour. Ideal for plastic bottle manufacturing (up to 2 liters), it integrates a PLC system, advanced hydraulic controls, and four heating zones. The robust mild steel construction, single-cavity design, and fully computerized control panel ensure reliability. Add to Cart before this offer disappears!

Exceptional Performance for Plastic Bottle Manufacturing

Engineered for outstanding performance, this fully automatic extrusion blow molding machine is perfect for high-capacity plastic bottle manufacturing. Featuring integrated PLC and hydraulic systems, infrared heating, and water-cooled molding, it offers seamless production with an adjustable stretching stroke. Its rare set of features-including computerized controls and a 40-50 ton clamping force-ensure technical supremacy and efficiency, making it a leader in its class for any demanding production environment.

Domestic Reach, Supply Capacity, and Certifications

With a reliable drop-off record across India, this computerized blow molding machine is offered by a prominent exporter, manufacturer, and supplier at the lowest price compared to the prevailing list price. Supply ability ensures consistent order fulfillment, and the machine meets essential certifications for quality and safety. Its availability on clearance further cements its value, making it an unmatched option in domestic markets where performance meets cost-effectiveness.

FAQ's of Computerized Blow Molding Machine:

Q: How does the computerized control panel enhance the blow molding process?

A: The computerized control panel streamlines operations, enabling precise adjustments and real-time monitoring of production parameters, resulting in higher efficiency and consistency.

Q: What type of bottles can be produced with this blow molding machine?

A: This machine is designed for manufacturing plastic bottles up to 2 liters in capacity, supporting various industrial packaging needs.

Q: Where can the Computerized Blow Molding Machine be supplied within India?

A: The machine is available for reliable drop-off and delivery across all main domestic markets in India, thanks to its robust supply ability.

Q: What certifications does this machine hold?

A: The machine is manufactured to meet recognized industry certifications related to quality, safety, and operational standards.

Q: When is the best time to purchase this machine?

A: Now is the best time to purchase, as it is available on clearance at the lowest price below the standard list price, offering exceptional value.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Blow Moulding Machine' category

1 Liter Automatic Triple Head Double Stage Blow Molding Machine Price : 1900000 INR/Piece Minimum Order Quantity : 1 Product Type : Automatic Triple Head Double Stage Blow Molding Machine Feature : Other, High Production Efficiency Material : Other, Mild Steel, Plastic (Product) Blow Moulding Type : Other, Double Stage Cavity Quantity : 3 (Triple Head) Color : Blue & White Weight (kg) : Approx. 2800 kg General Use : Manufacturing Plastic Bottles up to 1 Liter Type : Other, Blow Molding Machine Capacity : 1 Liter Power : 16 kW Computerized : Yes Automatic : Yes Dimension (L*W*H) : 2750 x 1300 x 2200 mm Infrared Heater : Other, Available Voltage : 380 V High Pressure Air Displacement : 2.5 m3/min Clamping Stroke : 220 mm Mould Stroke : 180 mm Low Pressure Air Displacement : 1.2 m3/min Clamping Force : ~50 kN Stretching Stroke : Nest. 320 mm

Send Inquiry

250 ML Automatic Blow Moulding Machine Price : 600000 INR/Piece Minimum Order Quantity : 1 Product Type : 250 ML Automatic Blow Moulding Machine Feature : Other, Automatic Operation Material : Other, Mild Steel Blow Moulding Type : Extrusion Blow Moulding Cavity Quantity : Single Cavity Color : CreamBlue Weight (kg) : 1100 kg General Use : Producing plastic bottles and containers Type : Other, Plastic Blow Moulding Machine Capacity : 250 ml Power : 6.5 kW Computerized : Yes Automatic : Yes Dimension (L*W*H) : 1400 x 900 x 1800 mm Infrared Heater : Other, Included Voltage : 380 V High Pressure Air Displacement : 1.2 m3/min Clamping Stroke : 140 mm Mould Stroke : 240 mm Low Pressure Air Displacement : 0.8 m3/min Clamping Force : 38 kN Stretching Stroke : 120 mm

Send Inquiry

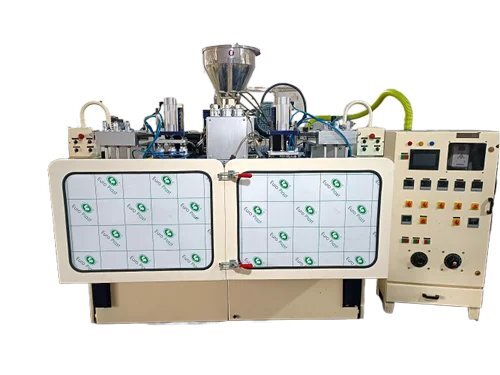

1 Ltr Triple Head Double Stage With Auto-deflashing System Price : 1700000 INR/Piece Minimum Order Quantity : 1 Product Type : Blow Moulding Machine Feature : Other, High Output, Energy Efficient Material : Other, Mild Steel Blow Moulding Type : Extrusion Blow Moulding Cavity Quantity : 1 Unit Color : Grey & Blue Weight (kg) : 1200 Kilograms (kg) General Use : Bottle/Jar Manufacturing Type : Other Capacity : 500ML TO 2 LTR Ltr Power : 8 kW Watt (w) Computerized : No Dimension (L*W*H) : 2000 x 1100 x 2200 mm Millimeter (mm) Infrared Heater : Yes Voltage : 380 V Volt (v) Clamping Stroke : 160 mm Mould Stroke : 300 mm Low Pressure Air Displacement : 0.8 m3/min Clamping Force : 30 kN Kilonewton (kN)
